35mm² Automotive High Voltage Electric Vehicle Cable - EV
Silicone Rubber Insulated Material! Tinned Copper Screening Braid! Leading Material in the EV Industry! High voltage (HV), silicone insulated, single core multi-stranded automotive cable for use in electric and hybrid vehicles for component interconnection

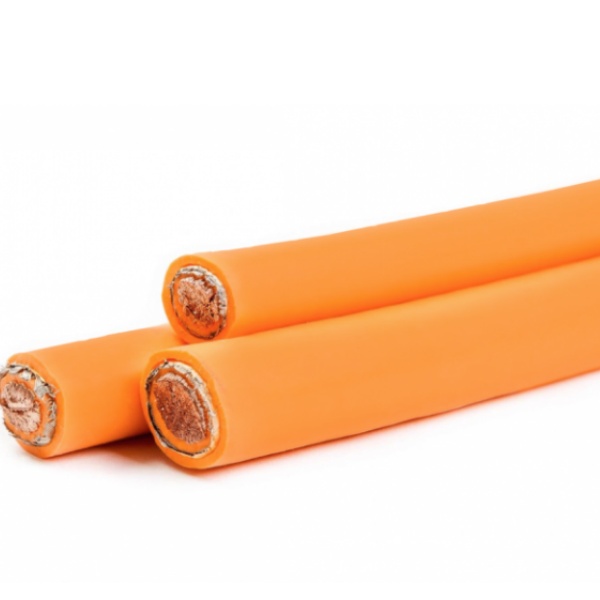

This shielded orange cable is suitable for automotive electric powertrain HV connector assemblies, including KERS and ERS (Energy Recovery Systems). It also combines high voltage load handling, EMC shielding and exceptional flexibility required for various automotive applications. Insulated screened orange HV cable for use on electric and hybrid vehicles.
Automotive High Voltage Electric Vehicle Cable - EV | |
Voltage | Suitable for Max 600V AC / 1000V DC |

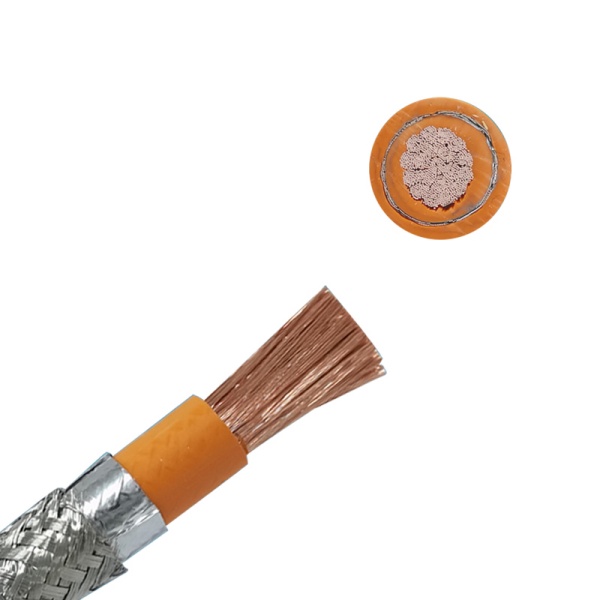

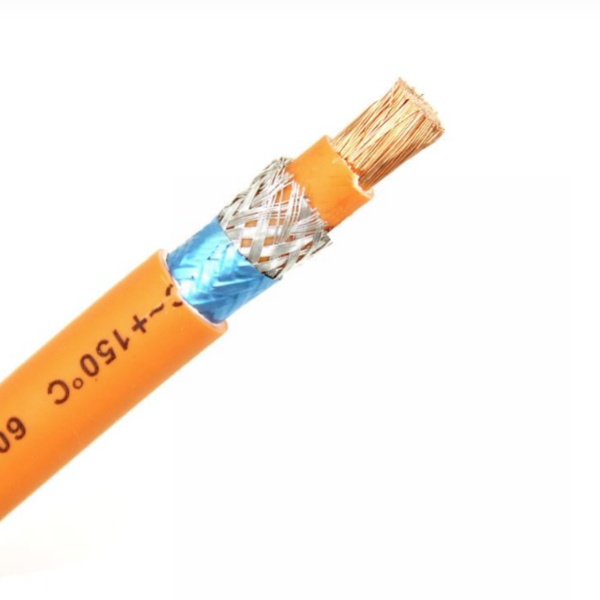

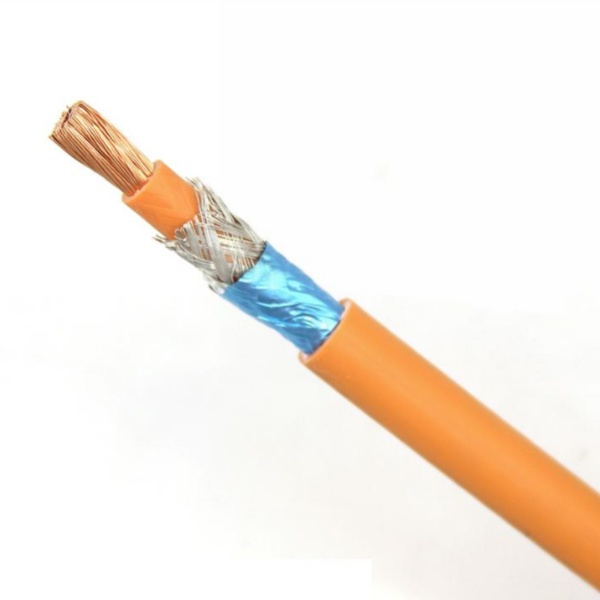

Material | Tinned copper screening braid and ALU-PET foiled shielding |
Jacket | Silicone rubber |
Conductor Specification | 1070/0.21mm |
temperatures | from -40°C to +180°C with excursions upto 205°C |

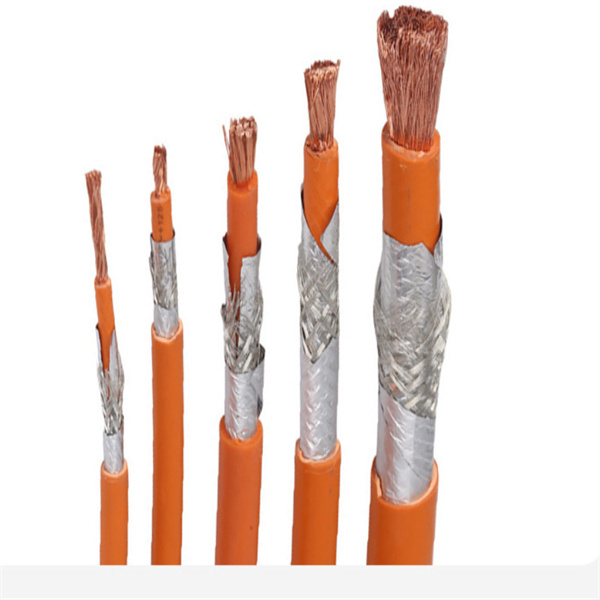

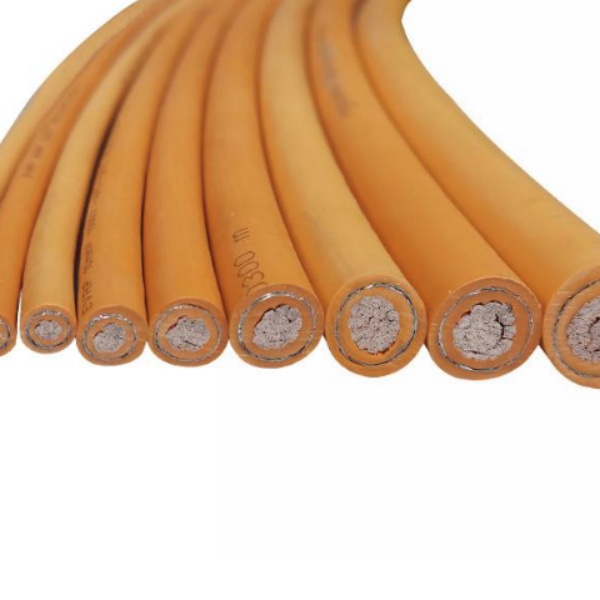

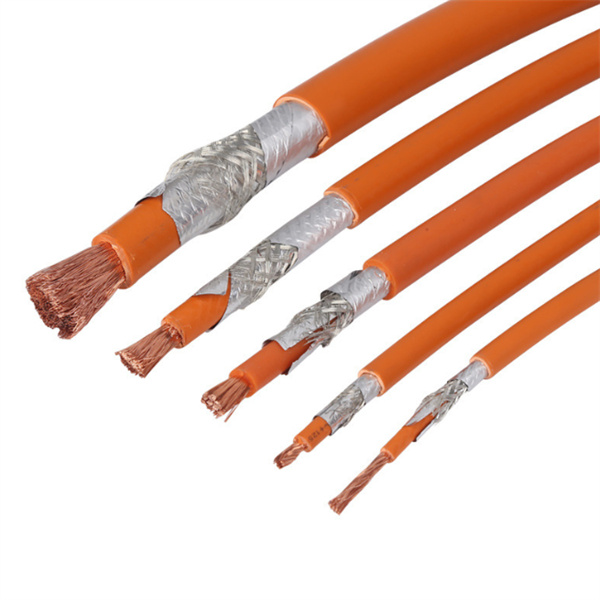

Model | Spec (mm2) | Core ID (mm) | Outer Diameter (mm) | Conductor Spec. |
EVRP EV Car High Voltage Shielded Cable | 2.5 | 3.6 | 6 | 80/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 4 | 4.4 | 6.8 | 120/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 6 | 5.2 | 7.6 | 190/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 10 | 6.5 | 9.2 | 318/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 16 | 8 | 10.8 | 510/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 25 | 10 | 13.2 | 795/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 35 | 11 | 14.5 | 1114/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 50 | 13 | 16.5 | 1591/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 70 | 15 | 19 | 2227/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 95 | 17.3 | 21.6 | 3022/0.2AS |
EVRP EV Car High Voltage Shielded Cable | 120 | 19.5 | 23.2 | 3818/0.2AS |
