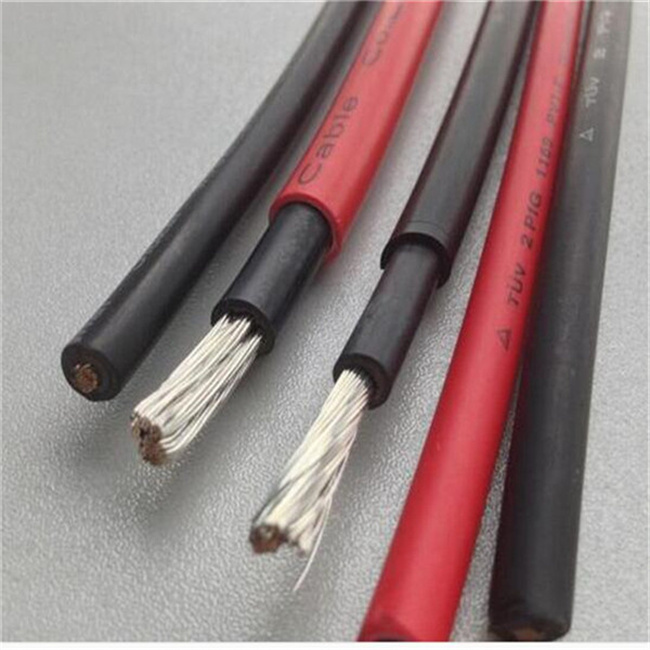

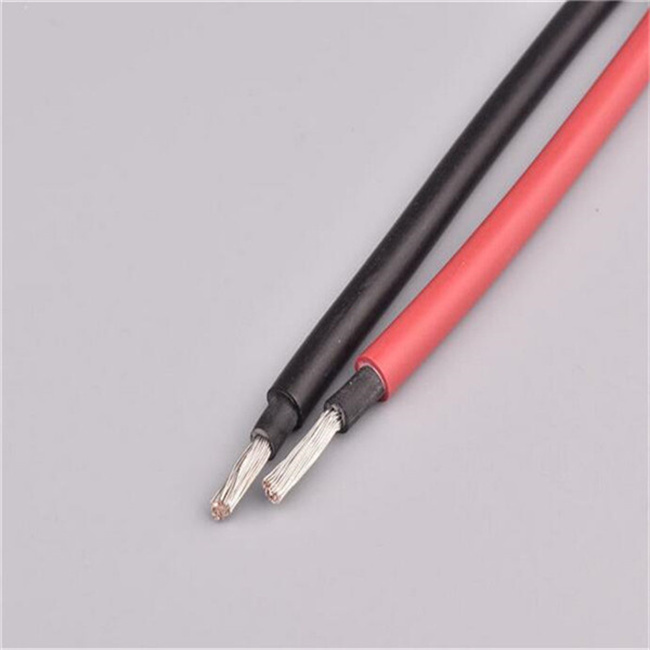

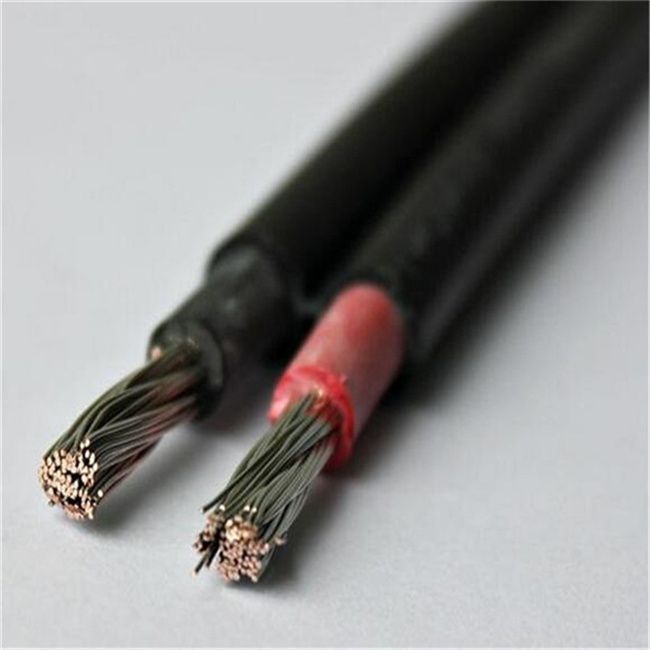

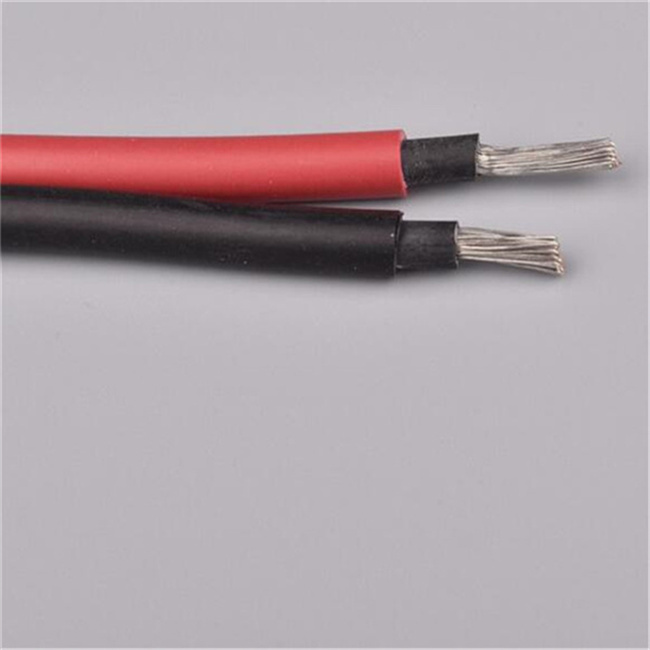

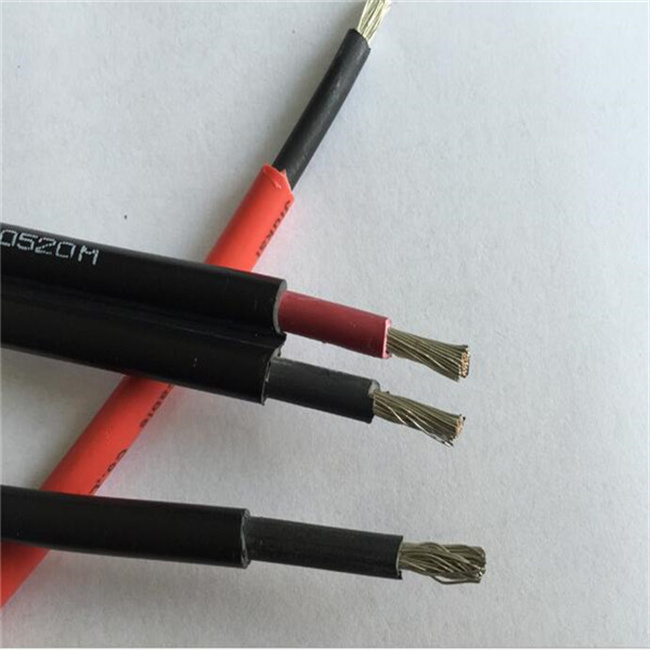

Solar PV DC Cables (TÜV/UL)
4mm2, 6mm2,10mm2 TUV Certification 2PfG 1169 PV1-F Solar PV DC Cable 0.6/1.0kV
1.Construction: Tinned cooper, XLPE insulation, XLPE outer sheath. 2.Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC. 3.Halogen free and low smoke, Rohs standard. 4.UV resistance. 5.Temperature rating:-40Degree to 125Degree, cold resistance. 6.Certificate: TUV UL CCC CSA 7.Power cable for photovoltaic system.
Cable design
Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
Insulation: irradiation cross-linkable LSZH flame retardant polyolefin compound
Outer jacket: irradiation cross-linkable LSZH flame retardant polyolefin compound resistance against water , UV resistant
Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C
Electrical characteristics
Nominal voltage: AC 600/1000V,DC 900/1800V
AC-test-voltage: 6.5KV
Application
SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
solar cable specifications | |
Core Conductor: | Tinned annealed copper(stranded core) |
Popular Sizes: | 1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
Cable Conductor: | Stranded tinned annealed copper |
Insulation: | XLPE |
Jacket: | XLPE(black, red) |
Nominal Volvatage: | Uo/U= 600/1000VAC, 1000/1800VDC |
Test Voltage: | 6500V, 50HZ, 5Min |
Fire Performance: | IEC 60332-1, UL1581 VW-1 |
Bending Radius | Fixed installation>4X, Occasionally moved>5X |
Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years
