Flexible Battery Connection Wires

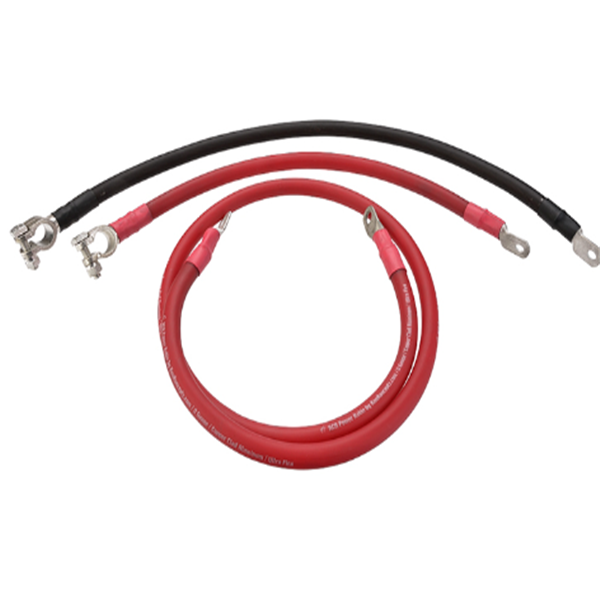

16mm2,25mm2,35mm2 Automotive SAE J-1127, SGT model copper battery connection Cable with cable lugs
used for connection of Solar battery,car battery,vehicle battery,UPS to inverter, etc. Popular Size: 10mm,16mm,25mm,35mm,50mm Gauge Size: 8AWG, 6AWG, 4AWG, 2AWG, 1AWG Rated Voltage: 450V/750V Conductor: 99.7% Stranded Bare Copper Insulation: PVC Length: 20/30/40/50/60/80/100cm and customized Color: Black, Red
1) Rated Temperature: -40℃ to 105℃
2) Conductor Material: Bare Copper
3) AWG Size: Customized
4) Cable Length: Customized
5) Battery Cable End: Cable lug, top post, battery terminal or customized.
6) Standard: UL758
7) Insulation:PVC
8) Insulation Color: Black, Red, Yellow etc.
9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
Insulation color | Red,black |
Terminal material | Copper with tin plated |
Usage | Marine, Car, Truck, RV, Solar |
Wire Size | Customized |
Wire length | Customized |
Samples | Free |
-
Features:
- Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
- Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
Advantages:
High purity oxygen-free copper core
Using high purity oxygen-free copper core, anti-oxidation, stable conductivity
Environmental protection and safety, non-toxic and harmless
Selected PVC materials, safe and environmentally friendly, non-toxic and tasteless
Using tinned copper lug
Not easy to oxidize, long use time, good conductivity
Welding method: Lug and wires are more secure and not easy to fall off
