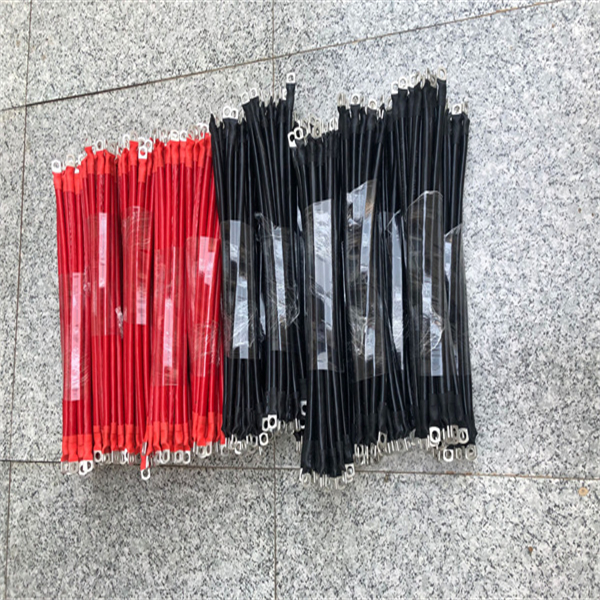

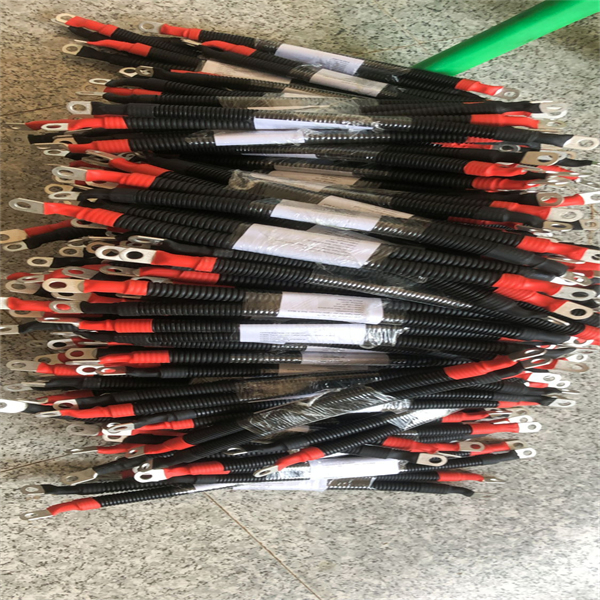

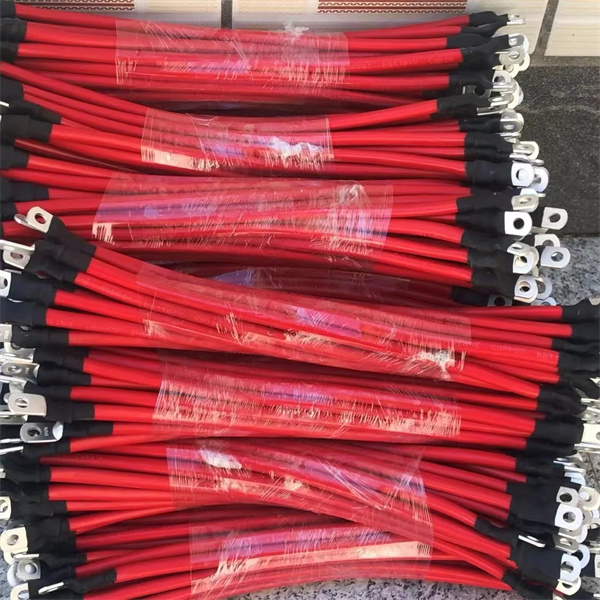

DC Battery Connection Cable Pure Copper 10mm 16mm 25mm 35mm

Flexible Battery Connection Wires

DC Battery Connection Cable Pure Copper 10mm 16mm 25mm 35mm

used for connection of Solar battery,car battery,vehicle battery,UPS to inverter, etc. Popular Size: 10mm,16mm,25mm,35mm,50mm Gauge Size: 8AWG, 6AWG, 4AWG, 2AWG, 1AWG Rated Voltage: 450V/750V Conductor: 99.7% Stranded Bare Copper Insulation: PVC Length: 20/30/40/50/60/80/100cm and customized Color: Black, Red

Technical Data of DC Battery Cables
Cable Type	BVR
Popular Size	10mm², 16mm², 25mm², 35mm², 50mm²
Gauge	8 AWG, 6 AWG, 4 AWG, 2 AWG, 1 AWG
Conductor	99.7% stranded bare copper
Insulation Material	PVC
Standard	GB/T 19666-2005, JB/T 8734.2-2006
Rated Voltage	450/750V
Lug Aperture Diameter	M6, M8, M10
Temperature	70°C
Color	Black, Red
Length	20, 30, 40, 50, 60, 80, 100 cm, or customized
Lug Installation Method	Crimping
Application	Used for car battery, inverter, battery storage, and other DC power connections.

Size of Battery DC Cables
Size mm²	Conductor Construction No. of Strand / mm	Cable OD mm	Resistance at 20°C Ω/km	Rated Current at 30°C A	Rated Voltage V	Weight of 100m kg
1×1.5	13×0.41	3.2	12.1	24	450/750	2
1×2.5	19×0.41	4.1	7.41	32	450/750	3.05
1×4.0	19×0.52	4.8	4.61	42	450/750	4.6
1×6.0	19×0.64	5.3	3.08	55	450/750	6.7
1×10	49×0.52	6.8	1.83	75	450/750	12.9
1×16	49×0.64	8.1	1.15	105	450/750	18.6
1×25	98×0.58	10.2	0.727	138	450/750	30.6
1×35	212×0.45	11.7	0.524	170	450/750	37.1
1×50	304×0.45	13.9	0.387	215	450/750	54
1×75	189×0.68	16	0.268	265	450/750	82.4

Advantages:

High purity oxygen-free copper core

Using high purity oxygen-free copper core, anti-oxidation, stable conductivity

Environmental protection and safety, non-toxic and harmless

Selected PVC materials, safe and environmentally friendly, non-toxic and tasteless

Using tinned copper lug

Not easy to oxidize, long use time, good conductivity

Welding method: Lug and wires are more secure and not easy to fall off
