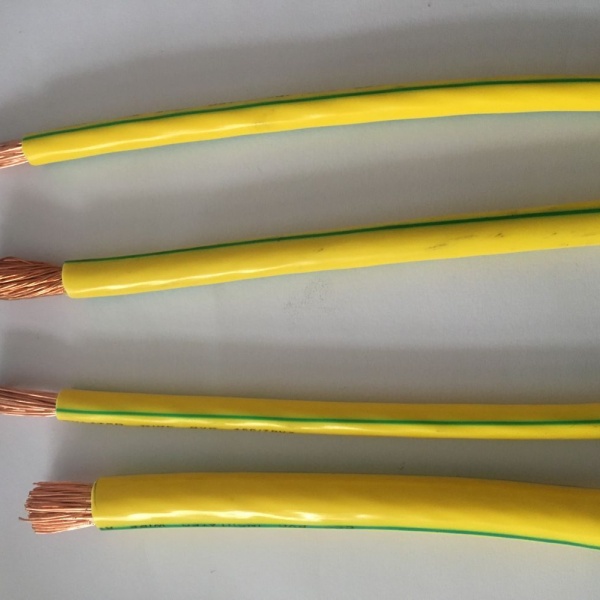

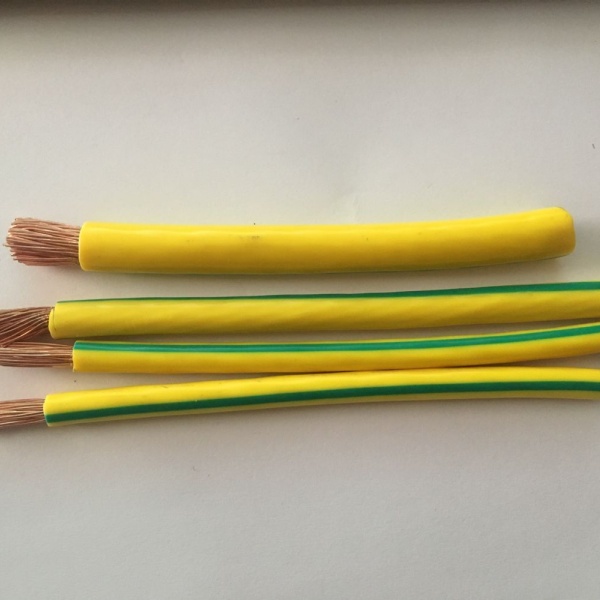

10mm2,16mm2,25mm2,35mm2,Yellow/Green Copper Flexible Grounding Earth Cable 450/750V

DC/AC electrical cable

10mm2,16mm2,25mm2,35mm2,Yellow/Green Copper Flexible Grounding Earth Cable 450/750V

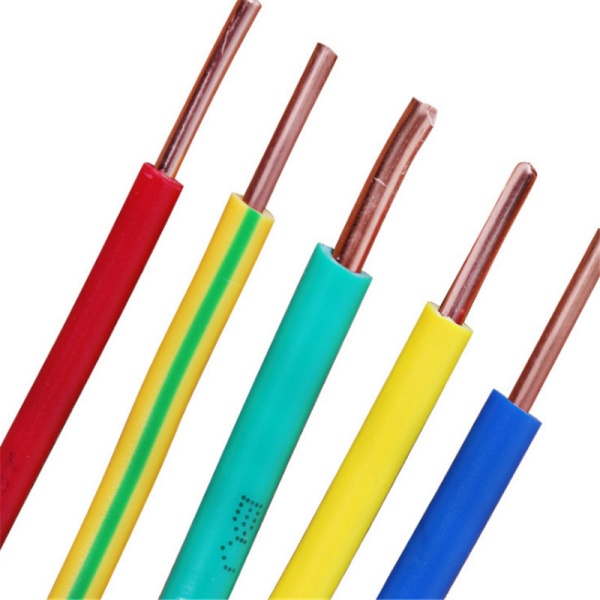

Popular Size: 10mm2,16mm2,25mm2,35mm2 Rated Voltage: 450V/750V AC Conductor: Stranded Bare Copper Insulation: PVC Color: Yellow/Green,Red, Green, Black, Blue, Yellow Package: 100m one roll

Application

The Earth Grounding Cable,PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. Earth Grounding Cable are widely used as connectors of solar system,driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U). Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V.

Model	BVR
Popular Size	4mm², 6mm², 10mm², 16mm², 25mm², 35mm²

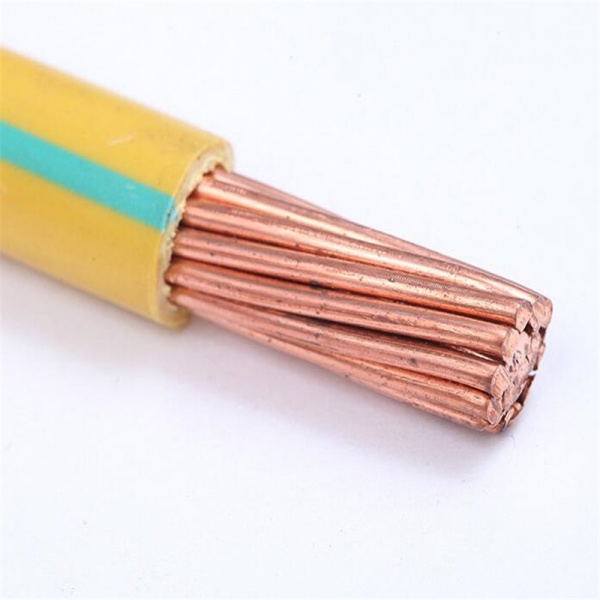

Conductor	Stranded bare copper
Insulation	PVC
Standard	JB/T 8734.2-1998
Rated Voltage	450/750V
Test Voltage	6kV / 50Hz AC
Temperature	70°C
Packing	100m/roll

Cable Size mm²	Conductor Construction No. of Strand / mm	Cable OD mm	Resistance at 20°C Ω/km	Rated Voltage V	Weight of 100m kg
1×1.5	13×0.41	3.2	12.1	450/750	2
1×2.5	19×0.41	4.1	7.41	450/750	3.05
1×4.0	19×0.52	4.8	4.61	450/750	4.6
1×6.0	19×0.64	5.3	3.08	450/750	6.7
1×10	49×0.52	6.8	1.83	450/750	12.9
1×16	49×0.64	7.1	1.15	450/750	18.6
1×25	98×0.58	10.2	0.727	450/750	30.6
