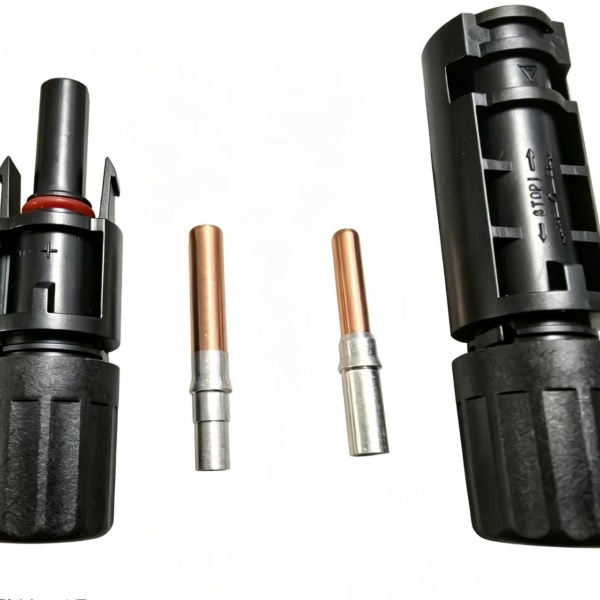

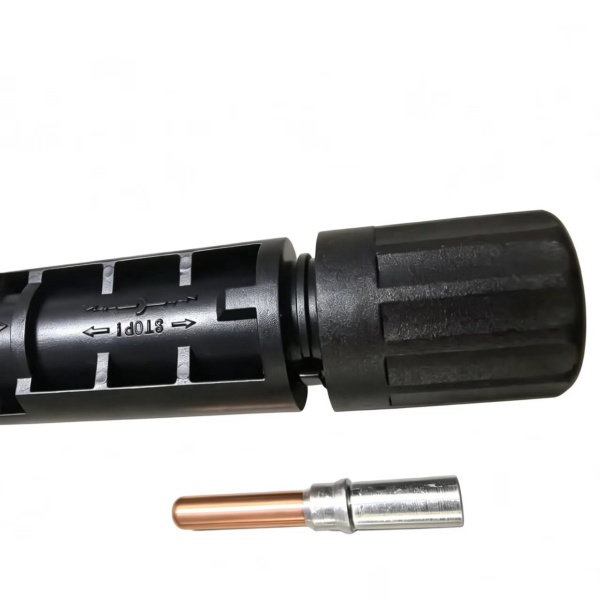

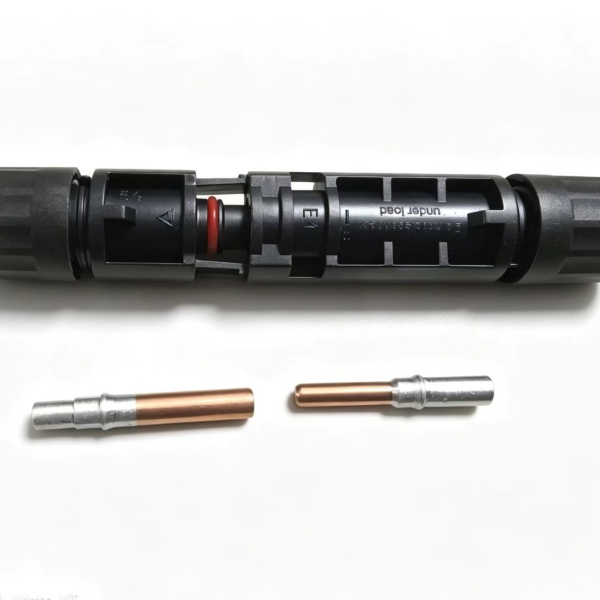

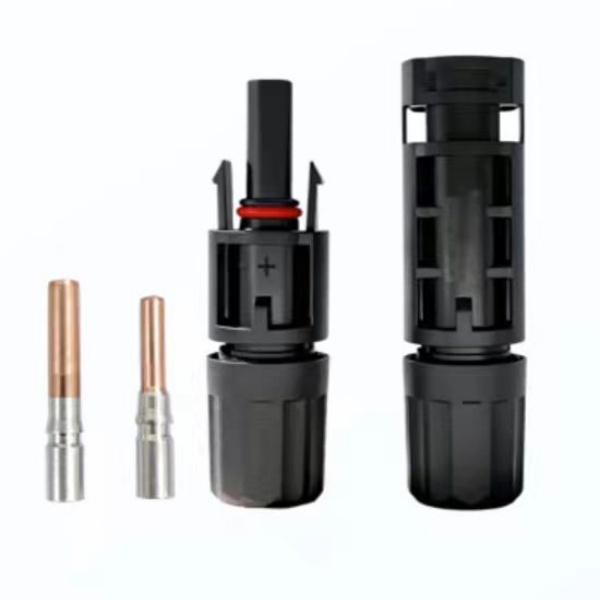

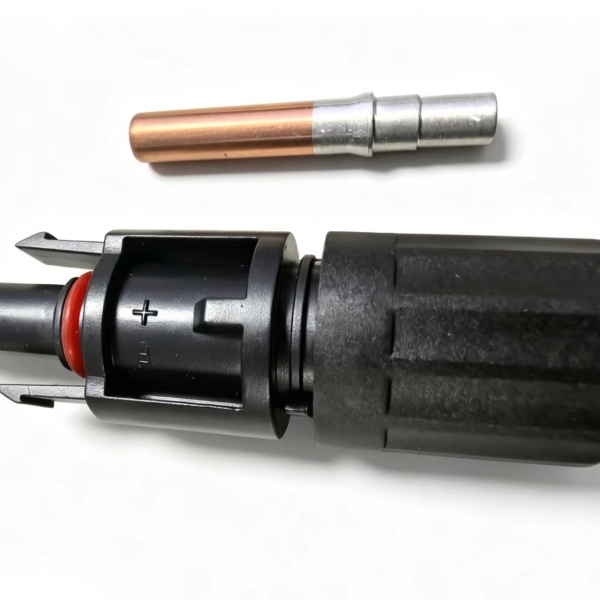

MC4 connector for 6mm2 10mm2 aluminum alloy conductor Solar PV DC Cable 1500V
MC4 connector for 6mm2 10mm2 aluminum alloy conductor Solar PV DC Cable 1500V
Solar Copper-Aluminum Connectors are a new generation of leading products in the photovoltaic industry.They replace the traditional cumbersome assembly method of copper-aluminum tube crimping followed by nut locking with a quick-installation structure that connects copper and aluminum terminals directly. This enables fast and convenient copper-to-aluminum connections in photovoltaic power stations and similar applications.
MC4 connector for 6mm2 10mm2 aluminum alloy conductor Solar PV DC Cable 1500V | |
Item | Plug Connector |
Operating Temperature Range | -40℃~+85℃ |
Upper Limit Temperature | 120°C |
Protection Rating | IP68 ( 1m,1h ) / IP65 |
Protection Rating (Unmated) | IP 2X |
Rated Voltage | 1500V DC |
Rated Current (at 85°C) | 41A 6mm² |
50A 10mm² | |
Rated Impluse Voltage | 16kV |
Contact Resistance | ≤ 0.3mΩ |
Flammabil ity Rating | UL94V-0 |
Overvoltage Category | CAT III |
Pollution Degree | 2 (inside of enclosure) |
Insulation Material | PA66 |
Contact Material | Copper-Aluminum alloy，Tin-Plated |
Terminal Connection Method | Crimping |
Connector Locking Mechanism | Locking |
Mating Cycles of the Connector | 100 |
Certification Standards | IEC 62852:2014 + Amd. 1:2020 |
EN 62852:2015 + Amd. 1:2020 | |
Certification | TÜV Rheinland |
MC4 connector for 6mm2 10mm2 aluminum alloy conductor Solar PV DC Cable 1500V
· Secure Connection, Superior Electrical Performance
· Longer Lifespan with Advanced Anti-Corrosion Coating
· Quick Installation, Compatible with Standard Systems
· Stable Performance in Extreme Environments
· Lightweight Design for Efficient Installation
· Eco-Friendly Production, Lower Lifecycle Cost
